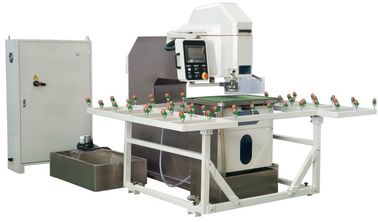

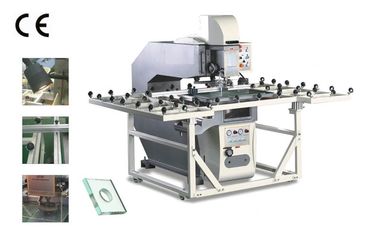

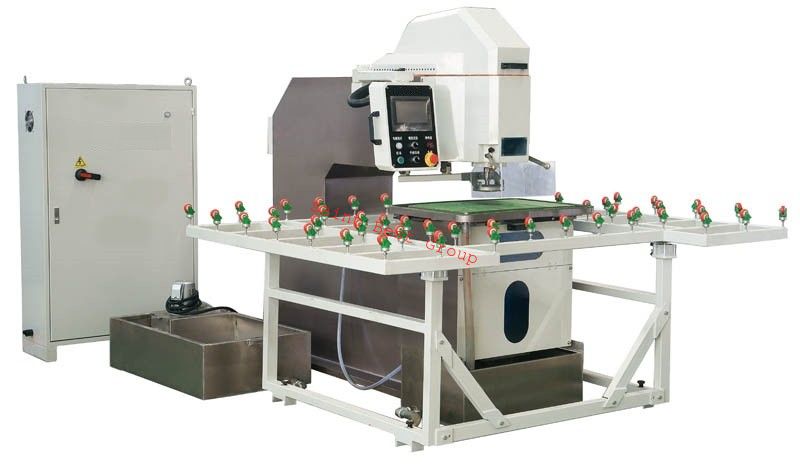

SBT-ZJ100 AUTOMATIC GLASS HORIZONTAL DRILLING MACHINE
I. General Description
1. Lower drilling bit is controlled by a cylinder while the upper bit is operated sutomsticlly.

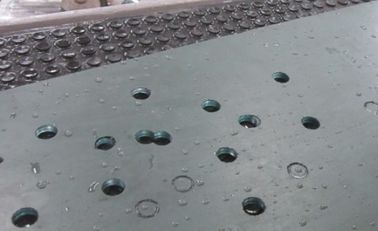

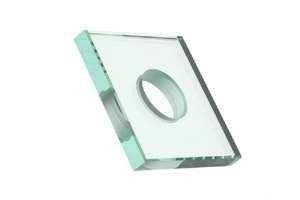

2. Different sizes of holes can be drilled with different diameters of bits.

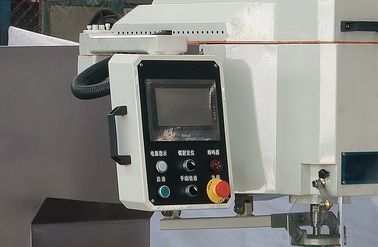

3. High working efficiency and easy operation
4. Lamp, ruler, infrared ray and waterproof cover make it more humanized.
II. Technical Parameters
1. Hole Diameter: φ5~φ100 mm
2. Glass thickness: 2 ~19 mm
3. Max. Processing size: 2000×2200mm
4. Height of Working Table: 940mm
5. Distance between drilling center and back column: 1000 mm
6. Size: 2200×2300×1700mm
7. Weight: 1200KG
8. Power: 4.95Kw
